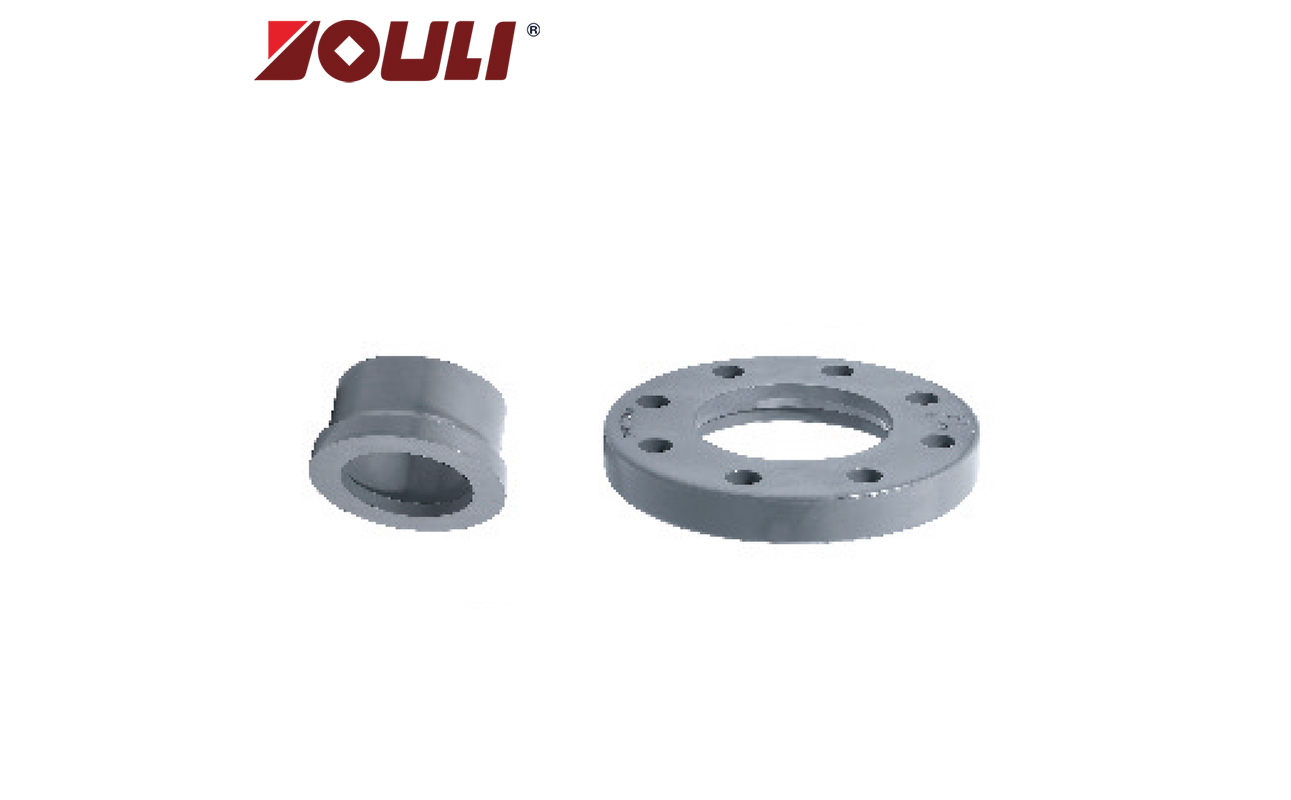

SCH80 PVC-C/PUC-U 活套法兰 Van Stone Flange

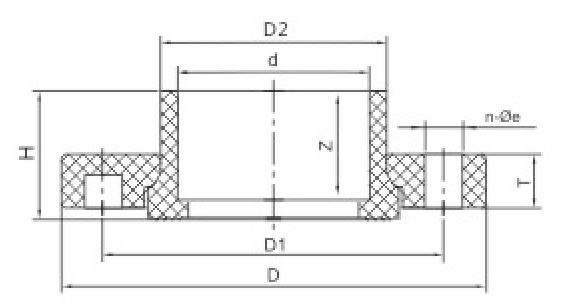

| 规格 Size | 外形尺寸 Dimensions（mm） | 编码 Code | ||||||||
| D | d | Z | D1 | D2 | T | n-φe | H | PVC-C | PVC-U | |
| 1" | 108 | 33.66 | 30.58 | 79.5 | 43.5 | 15 | 4-16 | 35.5 | YL 36 24 032MA | YL 05 24 032MA |
| 1½" | 127 | 48.56 | 37.93 | 98.5 | 61 | 18 | 4-16 | 44 | YL 36 24 050MA | YL 05 24 050MA |
| 2" | 152.5 | 60.63 | 41.1 | 121 | 73.5 | 20 | 4-19 | 47.5 | YL 36 24 063MA | YL 05 24 063MA |
| 2½" | 178 | 73.38 | 47.45 | 139.5 | 88.5 | 24 | 4-19 | 54.5 | YL 36 24 075MA | YL 05 24 075MA |
| 3" | 191 | 89.31 | 50.63 | 153 | 106 | 26 | 4-19 | 63.5 | YL 36 24 090MA | YL 05 24 090MA |
| 4" | 229 | 114.76 | 61.15 | 190 | 132 | 28 | 8-19 | 70.5 | YL 36 24 110MA | YL 05 24 110MA |
| 6" | 279 | 168.83 | 79.2 | 241 | 191 | 32 | 8-22 | 91.2 | YL 36 24 160MA | YL 05 24 160MA |
| 8" | 340 | 219.84 | 95 | 298 | 240 | 35 | 8-22 | 106 | YL 36 24 225MA | YL 05 24 225MA |
| 10" | 406 | 273.81 | 128 | 360 | 298 | 43 | 12-23 | 147 | YL 36 24 280MA | YL 05 24 280MA |
| 12" | 475 | 324.61 | 149.5 | 432 | 350 | 43 | 12-23 | 164 | YL 36 24 315MA | YL 05 24 315MA |
