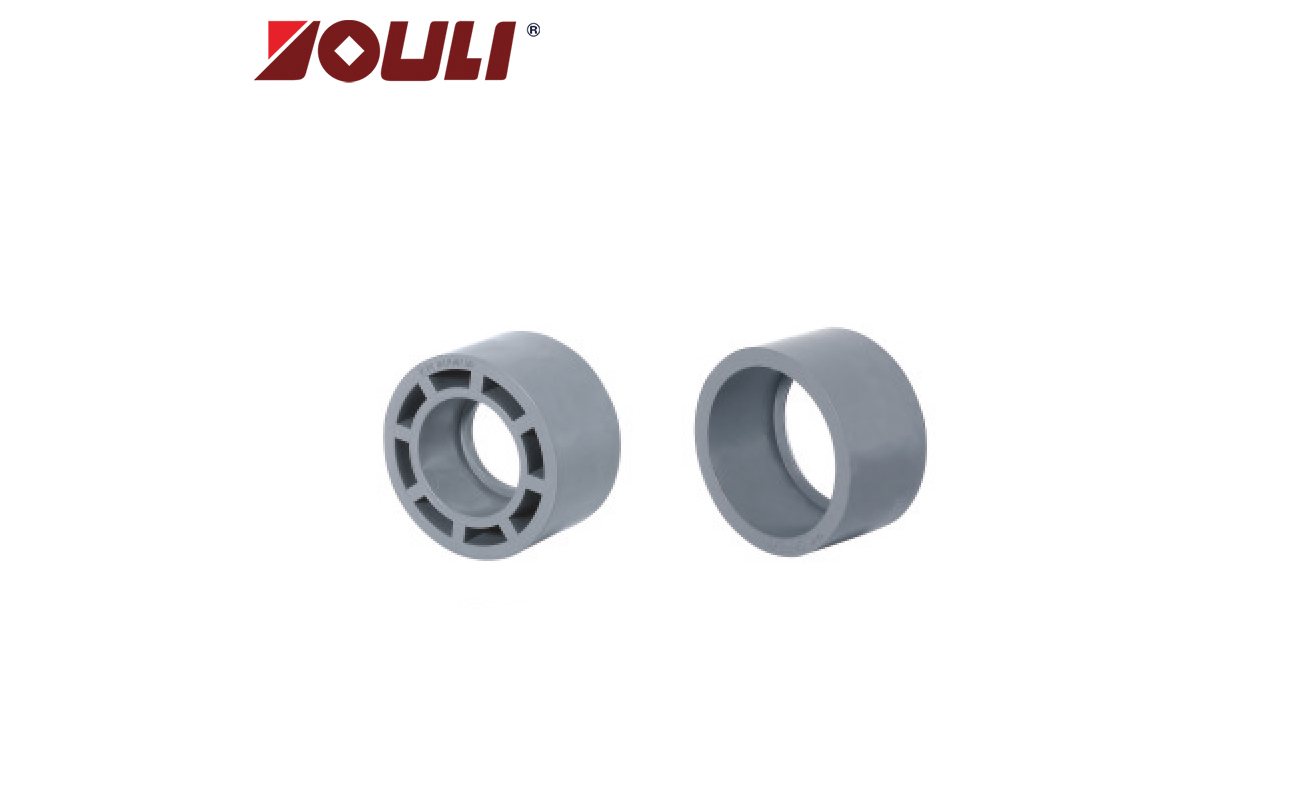

SCH80 PVC-C/PUC-U 缩接 Reducing Bush

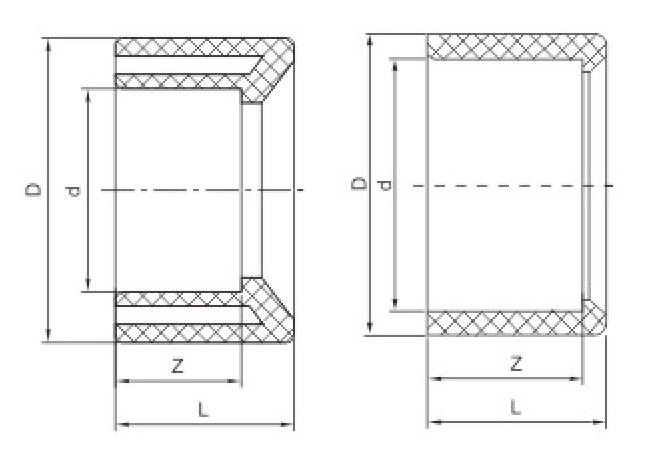

| 规格 Size | 外形尺寸 Dimensions（mm） | 编码 Code | ||||
| D1 | d1 | D2 | d2 | PVC-C | PVC-U | |
| ¾"×½" | 26.7 | 21.54 | 27.4 | 24.22 | YL 36 06 025MA | YL 05 06 025MA |
| 1"×½" | 33.4 | 21.54 | 30.58 | 24.22 | YL 36 06 031MA | YL 05 06 031MA |
| 1"×¾" | 33.4 | 26.87 | 30.58 | 27.4 | YL 36 06 032MA | YL 05 06 032MA |
| 1¼"×1" | 42.2 | 33.66 | 34.75 | 30.58 | YL 36 06 040MA | YL 05 06 040MA |
| 1½"×1¼" | 48.3 | 42.42 | 37.93 | 34.75 | YL 36 06 050MA | YL 05 06 050MA |
| 2"×1" | 60.3 | 33.66 | 41.1 | 30.58 | YL 36 06 062MA | YL 05 06 062MA |
| 2"×1½" | 60.3 | 48.56 | 41.1 | 37.93 | YL 36 06 063MA | YL 05 06 063MA |
| 2½"×2" | 73.0 | 60.63 | 47.45 | 41.1 | YL 36 06 075MA | YL 05 06 075MA |
| 3"×2½" | 88.9 | 73.38 | 50.63 | 47.45 | YL 36 06 090MA | YL 05 06 090MA |
| 4"×2" | 114.3 | 60.63 | 60.14 | 41.1 | YL 36 06 109MA | YL 05 06 109MA |
| 4"×3" | 114.3 | 89.31 | 60.15 | 50.63 | YL 36 06 110MA | YL 05 06 110MA |
| 5"×4" | 141.3 | 114.76 | 69.68 | 60.15 | YL 36 06 140MA | YL 05 06 140MA |
| 6"×3" | 168.3 | 89.31 | 79.2 | 50.63 | YL 36 06 158MA | YL 05 06 158MA |
| 6"×4" | 168.3 | 114.76 | 79.2 | 60.15 | YL 36 06 159MA | YL 05 06 159MA |
| 6"×5" | 168.3 | 141.81 | 79.2 | 69.68 | YL 36 06 160MA | YL 05 06 160MA |
| 8"×dn160a" | 219.1 | 160 | 105 | 86 | YL 36 06 224MA | YL 05 06 224MA |
| 8"×6" | 219.1 | 168.83 | 102 | 86 | YL 36 06 225MA | YL 05 06 225MA |
| dn280"×8" | 280 | 219.84 | 146 | 105 | YL 36 06 280MA | YL 05 06 280MA |
