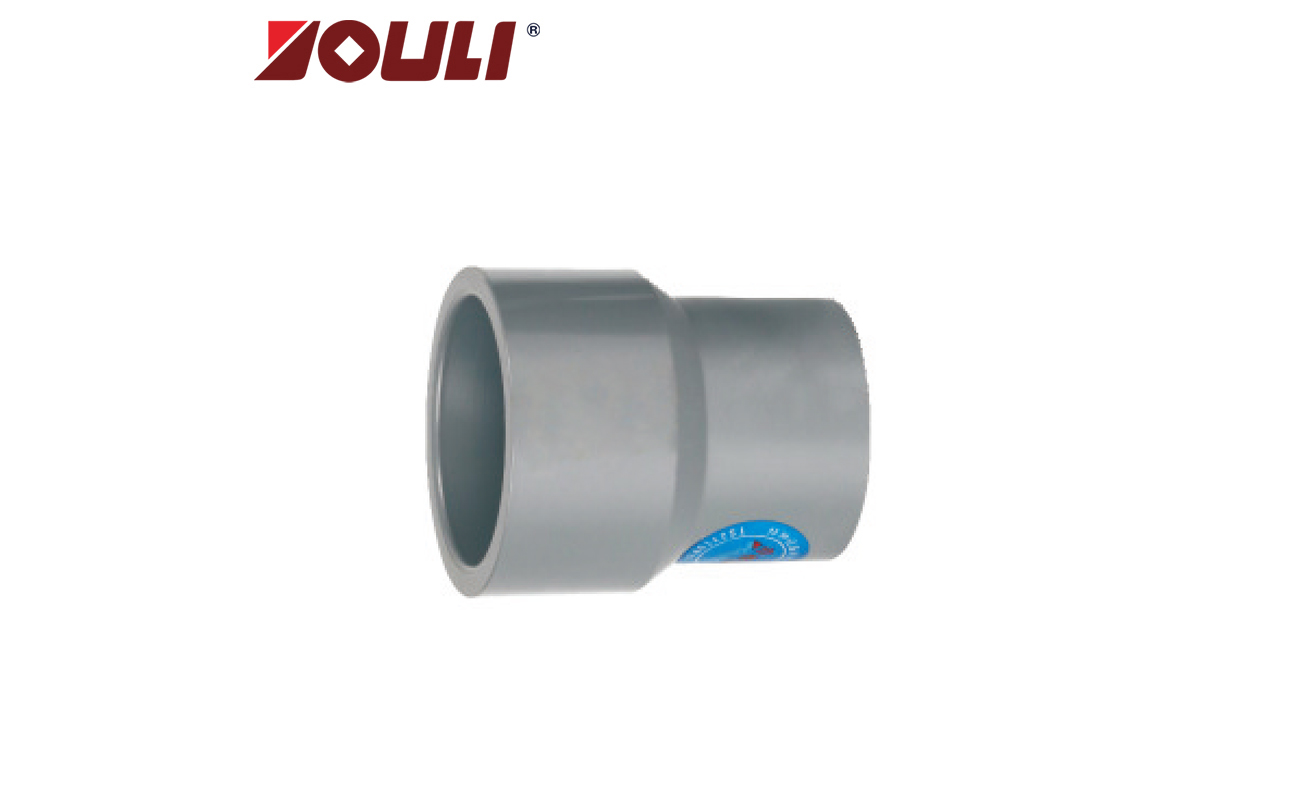

SCH80 PVC-C/PUC-U 大小头 Reducer

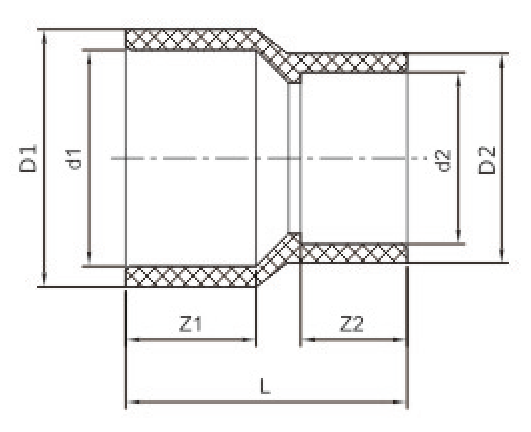

| 规格 Size | 外形尺寸 Dimensions（mm） | 编码 Code | |||||||
| D1 | d1 | D2 | d2 | L | Z2 | Z1 | PVC-C | PVC-U | |
| ¾"×½" | 35.5 | 26.87 | 30 | 21.54 | 59.5 | 24.22 | 27.4 | YL 36 09 025MA | YL 05 09 025MA |
| 1"×½" | 43.5 | 33.66 | 30 | 21.54 | 65.5 | 30.58 | 24.22 | YL 36 09 031MA | YL 05 09 031MA |
| 1"×¾" | 43.5 | 33.66 | 35.5 | 26.87 | 66.5 | 27.4 | 30.58 | YL 36 09 032MA | YL 05 09 032MA |
| 1¼"×1" | 52.5 | 42.42 | 43.5 | 33.66 | 76 | 30.58 | 34.75 | YL 36 09 040MA | YL 05 09 040MA |
| 1½"×1¼" | 59.5 | 48.56 | 52.5 | 42.42 | 81.5 | 34.75 | 37.93 | YL 36 09 050MA | YL 05 09 050MA |
| 2"×1" | 72.5 | 60.63 | 43.5 | 33.66 | 91.5 | 30.58 | 41.1 | YL 36 09 062MA | YL 05 09 062MA |
| 2"×1½" | 72.5 | 60.63 | 59.5 | 48.56 | 92 | 37.93 | 41.1 | YL 36 09 063MA | YL 05 09 063MA |
| 2½"×1¼" | 88.5 | 73.38 | 52.5 | 42.42 | 104 | 34.76 | 47.45 | YL 36 09 073MA | YL 05 09 073MA |
| 2½"×1½" | 88.5 | 73.38 | 59.5 | 48.56 | 105 | 37.93 | 47.45 | YL 36 09 074MA | YL 05 09 074MA |
| 2½"×2" | 88.5 | 73.38 | 72.5 | 60.63 | 102.5 | 41.1 | 47.45 | YL 36 09 075MA | YL 05 09 075MA |
| 3"×1½" | 105.5 | 89.31 | 59.5 | 48.56 | 116 | 37.93 | 50.63 | YL 36 09 088MA | YL 05 09 088MA |
| 3"×2" | 105.5 | 89.31 | 72.5 | 60.63 | 114 | 41.1 | 50.63 | YL 36 09 089MA | YL 05 09 089MA |
| 3"×2½" | 105.5 | 89.31 | 88.5 | 73.38 | 113.5 | 47.45 | 50.63 | YL 36 09 090MA | YL 05 09 090MA |
| 4"×2" | 133 | 114.76 | 72.5 | 60.63 | 136 | 41.1 | 60.15 | YL 36 09 108MA | YL 05 09 108MA |
| 4"×2½" | 133 | 114.76 | 88.5 | 73.38 | 136 | 47.45 | 60.15 | YL 36 09 109MA | YL 05 09 109MA |
| 4"×3" | 133 | 114.76 | 105.5 | 89.31 | 131.5 | 50.63 | 60.15 | YL 36 09 110MA | YL 05 09 110MA |
| 5"×2½" | 162 | 141.81 | 88.5 | 73.38 | 159 | 47.45 | 69.68 | YL 36 09 138MA | YL 05 09 138MA |
| 5"×4" | 162 | 141.81 | 133 | 114.76 | 151.74 | 60.15 | 69.68 | YL 36 09 140MA | YL 05 09 140MA |
| 6"×4" | 192 | 168.83 | 133 | 114.76 | 175 | 60.15 | 79.2 | YL 36 09 159MA | YL 05 09 159MA |
| 6"×5" | 192 | 168.83 | 162 | 141.81 | 71 | 69.68 | 79.2 | YL 36 09 160MA | YL 05 09 160MA |
| 8"×dn160a" | 246 | 219.84 | 184 | 160.2 | 216 | 86 | 105 | YL 36 09 225MA | YL 05 09 225MA |
| 10"×8" | 300 | 273.81 | 243 | 219.84 | 277 | 93 | 142 | YL 36 09 280MA | YL 05 09 280MA |
| dn315"×10"a | 360 | 315.5 | 300 | 273.81 | 310 | 110 | 156 | YL 36 09 315MA | YL 05 09 315MA |
