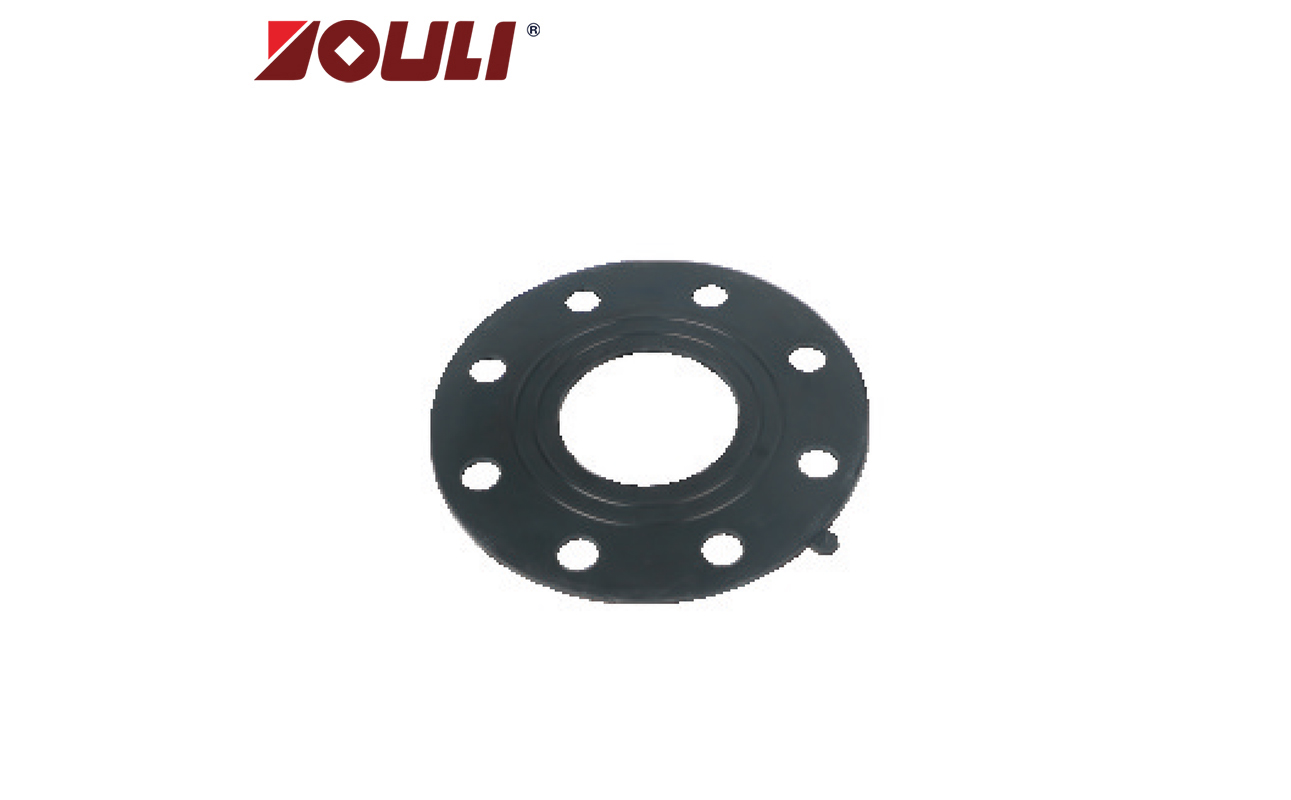

DIN法兰垫片Flange Gasket(三元乙丙EPDM、氟橡胶FPM)

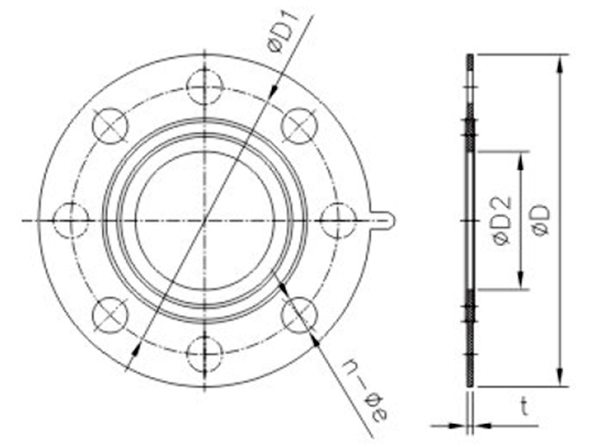

规格 Size | 外形尺寸 Dimensions(mm) | 编码 Code | ||||||
DN | dn | D | D1 | D2 | n-φe | t | PVC-C | PVC-U |
15 | 20 | 92 | 65 | 18 | 4-15 | 3 | F 03 03 020 | F 03 02 020 |
20 | 25 | 102 | 75 | 22 | 4-15 | 3 | F 03 03 025 | F 03 02 025 |
25 | 32 | 112 | 85 | 28 | 4-15 | 3 | F 03 03 032 | F 03 02 032 |
32 | 40 | 136 | 100 | 36 | 4-19 | 3 | F 03 03 040 | F 03 02 040 |
40 | 50 | 146 | 110 | 44 | 4-19 | 3 | F 03 03 050 | F 03 02 050 |
50 | 63 | 160 | 125 | 54 | 4-19 | 3 | F 03 03 060 | F 03 02 060 |
65 | 75 | 180 | 145 | 75 | 4-19 | 3 | F 03 03 075 | F 03 02 075 |
80 | 90 | 193 | 160 | 81 | 8-19 | 3 | F 03 03 090 | F 03 02 090 |
100 | 110 | 214 | 180 | 100 | 8-19 | 3 | F 03 03 110 | F 03 02 110 |
125 | 140 | 244 | 210 | 132 | 8-19 | 3 | F 03 03 140 | F 03 02 140 |
150 | 160 | 277 | 240 | 153 | 8-23 | 3 | F 03 03 160 | F 03 02 160 |
200 | 225 | 334 | 295 | 206 | 8-23 | 3 | F 03 03 225 | F 03 02 225 |
250 | 280 | 393 | 350 | 255 | 12-22 | 4 | F 03 03 280 | F 03 02 280 |
300 | 315 | 440 | 400 | 304 | 12-22 | 4 | F 03 03 315 | F 03 02 315 |
