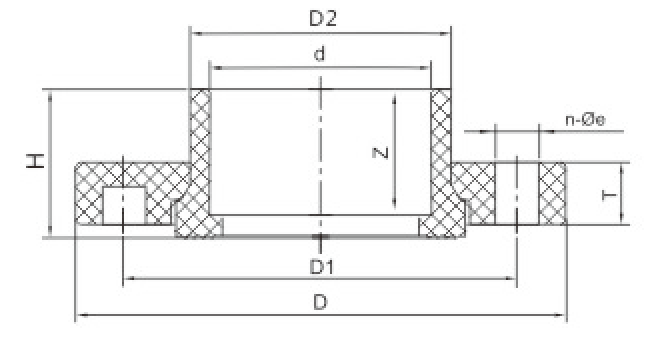

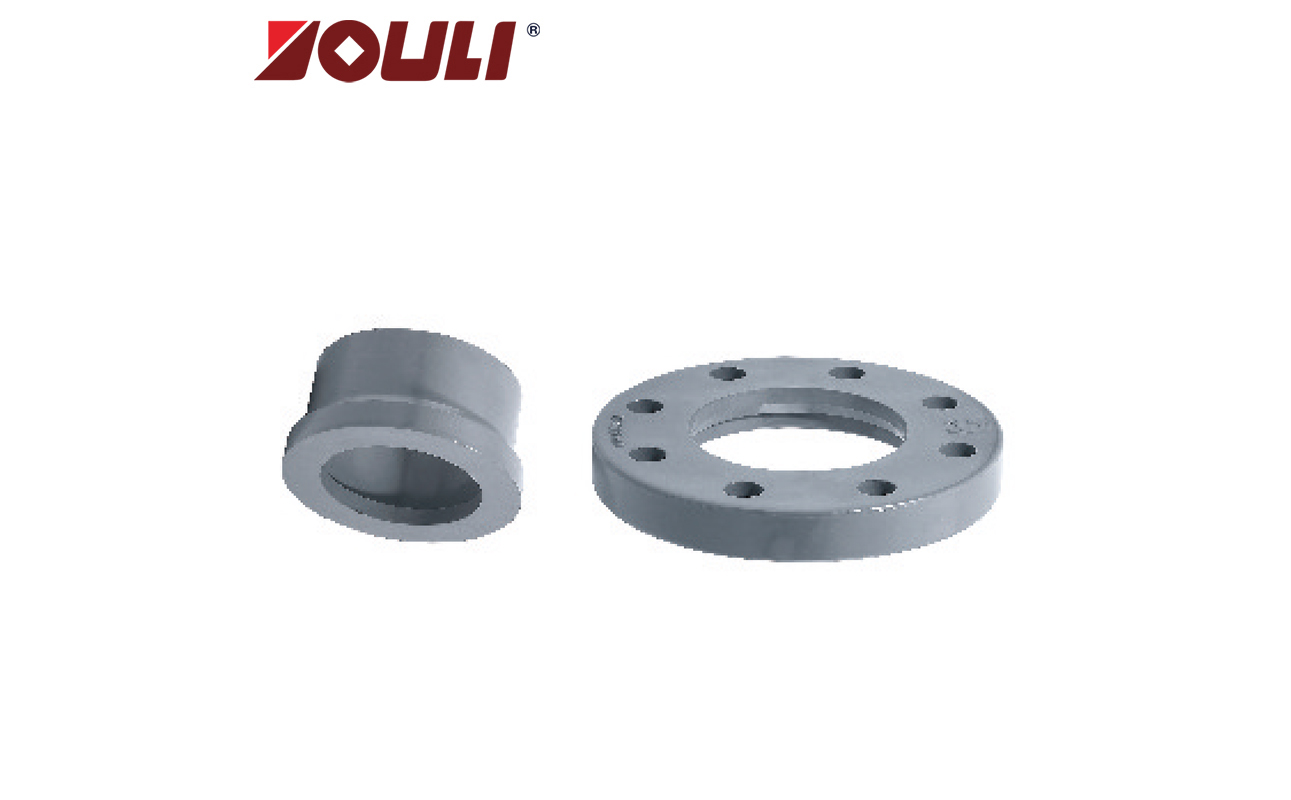

PVC-C/PVC-U 定制活套法兰 Van Stone Flange
规格 Size | 外形尺寸 Dimensions(mm) | 编码 Code | |||||||||
JIS 5K | DIN | ||||||||||
DN | dn | D | D1 | T | n-φe | d | D2 | Z | H | PVC-C | PVC-U |
15 | 20 | 80 | 60 | 12 | 4-12 | 20 | 27 | 16 | 20 | YL 36 24 020J | YL 05 24 020J |
20 | 25 | 85 | 65 | 14 | 4-12 | 25 | 33 | 19 | 24 | YL 36 24 025J | YL 05 24 025J |
25 | 32 | 95 | 75 | 15 | 4-12 | 32 | 41 | 22 | 28 | YL 36 24 032J | YL 05 24 032J |
32 | 40 | 115 | 90 | 16 | 4-15 | 40 | 50 | 26 | 33 | YL 36 24 040J | YL 05 24 040J |
40 | 50 | 120 | 95 | 17 | 4-15 | 50 | 61 | 31 | 38 | YL 36 24 050J | YL 05 24 050J |
50 | 63 | 130 | 105 | 18 | 4-15 | 63 | 75.5 | 38 | 43 | YL 36 24 063J | YL 05 24 063J |
65 | 75 | 155 | 130 | 22 | 4-15 | 75 | 90 | 43 | 52 | YL 36 24 075J | YL 05 24 075J |
80 | 90 | 180 | 145 | 23 | 4-19 | 90 | 106 | 51 | 60 | YL 36 24 090J | YL 05 24 090J |
100 | 110 | 200 | 165 | 24 | 8-19 | 110 | 127.5 | 62 | 71 | YL 36 24 119J | YL 05 24 119J |
125 | 140 | 235 | 200 | 28 | 8-19 | 140 | 160 | 76 | 86 | YL 36 24 140J | YL 05 24 140J |
