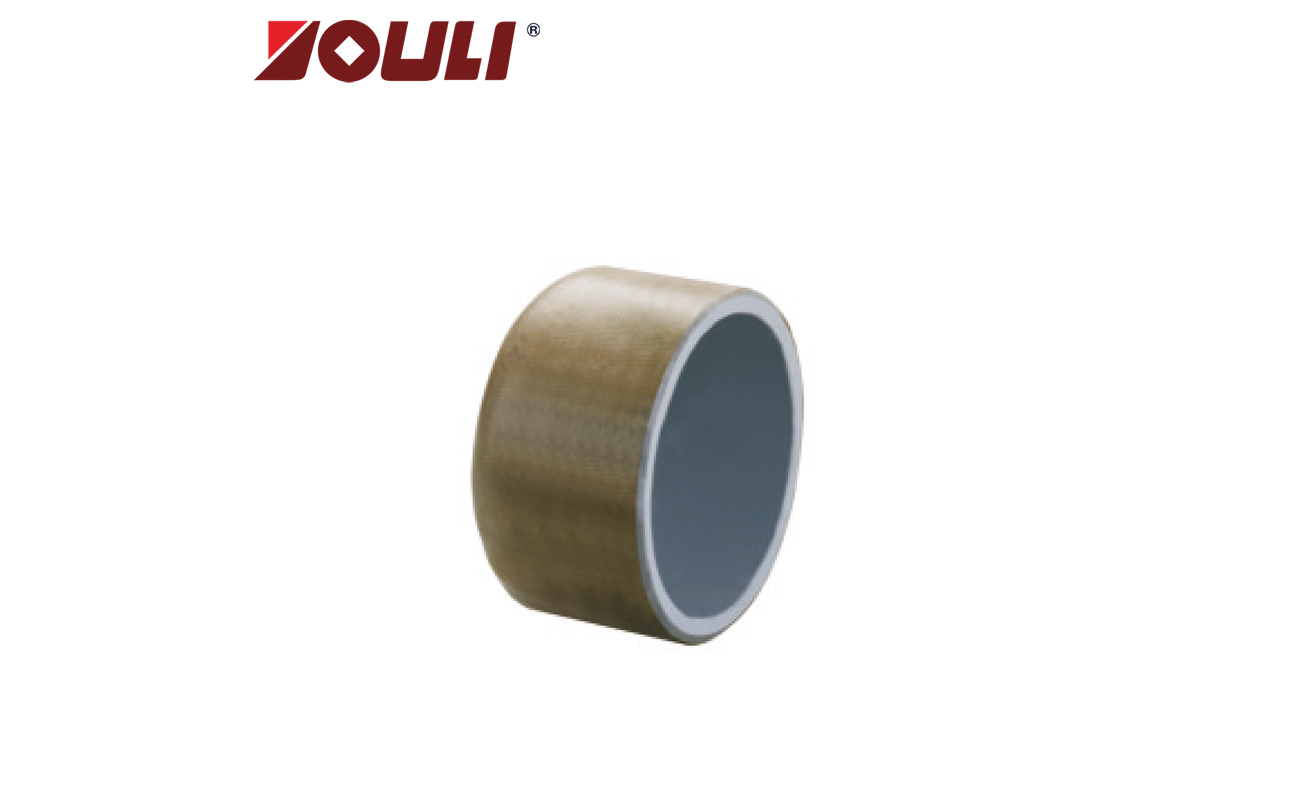

PVC-C/FRP、PVC-U/FRP 复合闷盖 Composite Cap

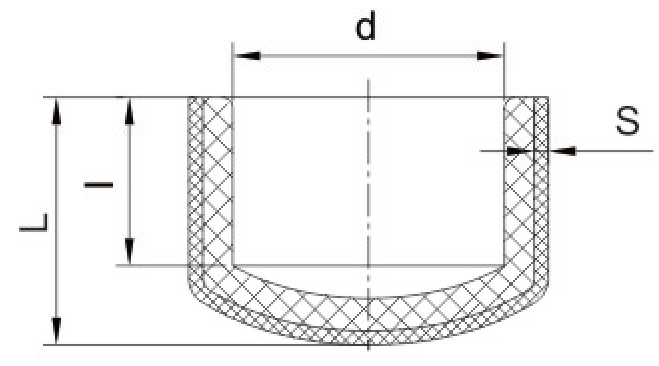

规格 Size | 外形尺寸 Dimensions(mm) | ||||
DN | dn | d | L | I | S |
15 | 20 | 20 | 22 | 16 | 2.5 |
20 | 25 | 25 | 25 | 19 | 2.5 |
25 | 32 | 32 | 30 | 22 | 2.5 |
32 | 40 | 40 | 35 | 26 | 2.5 |
40 | 50 | 50 | 43 | 31 | 2.5 |
50 | 63 | 63 | 51 | 38 | 2.5 |
65 | 75 | 75 | 59 | 44 | 2.5 |
80 | 90 | 90 | 69 | 51 | 2.5 |
100 | 110 | 110 | 80 | 61 | 2.5 |
125 | 140 | 140 | 102 | 76 | 2.5 |
150 | 160 | 160 | 114 | 86 | 2.5 |
200 | 225 | 225 | 150 | 119 | 2.5 |
250 | 280 | 280 | 186 | 146 | 2.5 |
