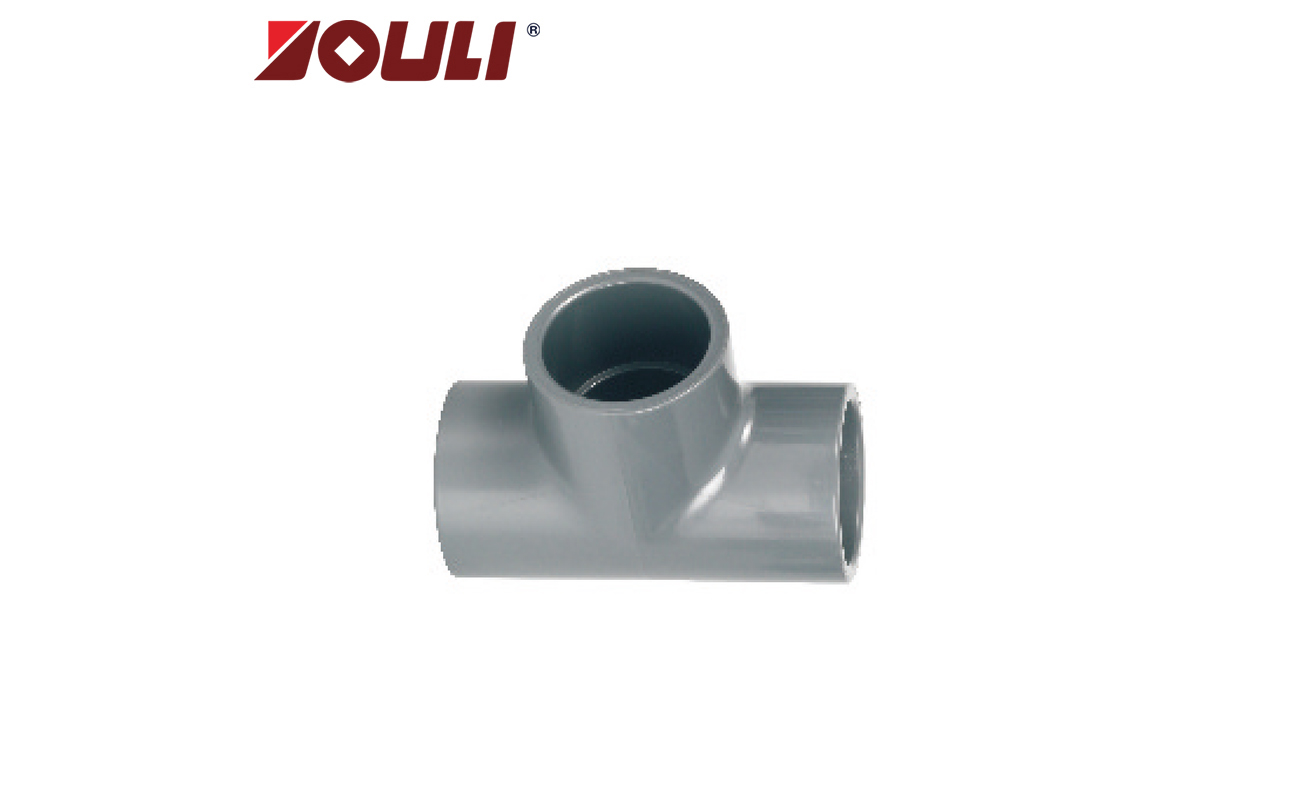

SCH80 PVC-C/PUC-U 三通 Tee

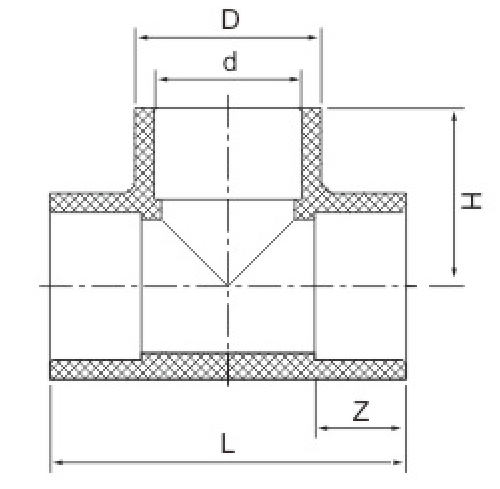

规格 Size | 外形尺寸 Dimensions(mm) | 编码 Code | |||||
D | d | H | L | Z | PVC-C | PVC-U | |
½" | 30 | 21.54 | 37 | 74 | 24.22 | YL 36 03 020MA | YL 05 03 020MA |
¾" | 35.5 | 26.87 | 43 | 86 | 27.4 | YL 36 03 025MA | YL 05 03 025MA |
1" | 44 | 33.66 | 48.58 | 97.16 | 30.58 | YL 36 03 032MA | YL 05 03 032MA |
1¼" | 54 | 42.42 | 57.75 | 115.5 | 34.75 | YL 36 03 040MA | YL 05 03 040MA |
1½" | 60 | 48.56 | 63.95 | 127.9 | 37.93 | YL 36 03 050MA | YL 05 03 050MA |
2" | 73 | 60.63 | 73.1 | 146.2 | 41.1 | YL 36 03 063MA | YL 05 03 063MA |
2½" | 88.5 | 73.38 | 87 | 174 | 47.45 | YL 36 03 075MA | YL 05 03 075MA |
3" | 105.5 | 89.31 | 99 | 198 | 50.63 | YL 36 03 090MA | YL 05 03 090MA |
4" | 133 | 114.76 | 122 | 244 | 60.15 | YL 36 03 110MA | YL 05 03 110MA |
5" | 162 | 141.81 | 146 | 195 | 69.68 | YL 36 03 140MA | YL 05 03 140MA |
6" | 192 | 168.83 | 169 | 338 | 79.2 | YL 36 03 160MA | YL 05 03 160MA |
8" | 246 | 219.84 | 228 | 457 | 105 | YL 36 03 225MA | YL 05 03 225MA |
10" | 302 | 273 | 300 | 589 | 143 | YL 36 03 280MA | YL 05 03 280MA |
