PVC-U 缩接
分享到:
产品中心

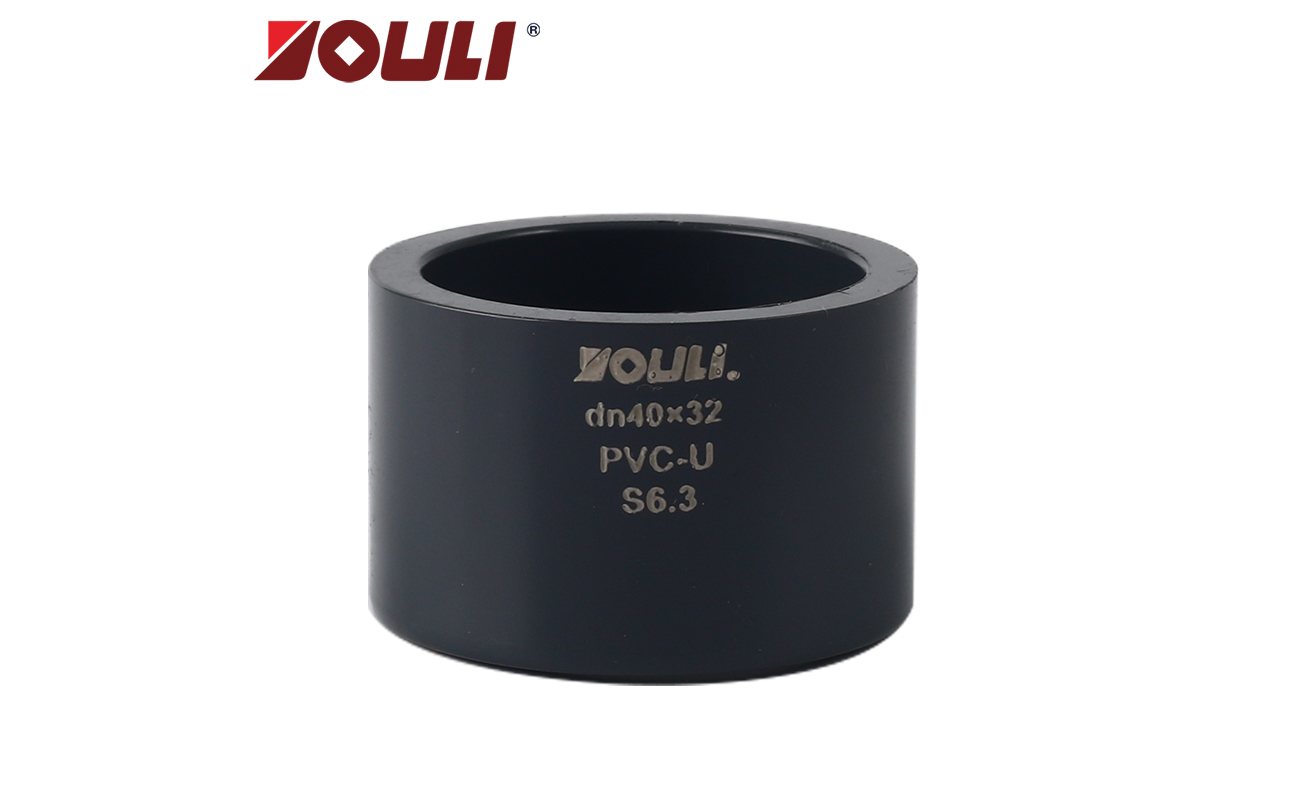

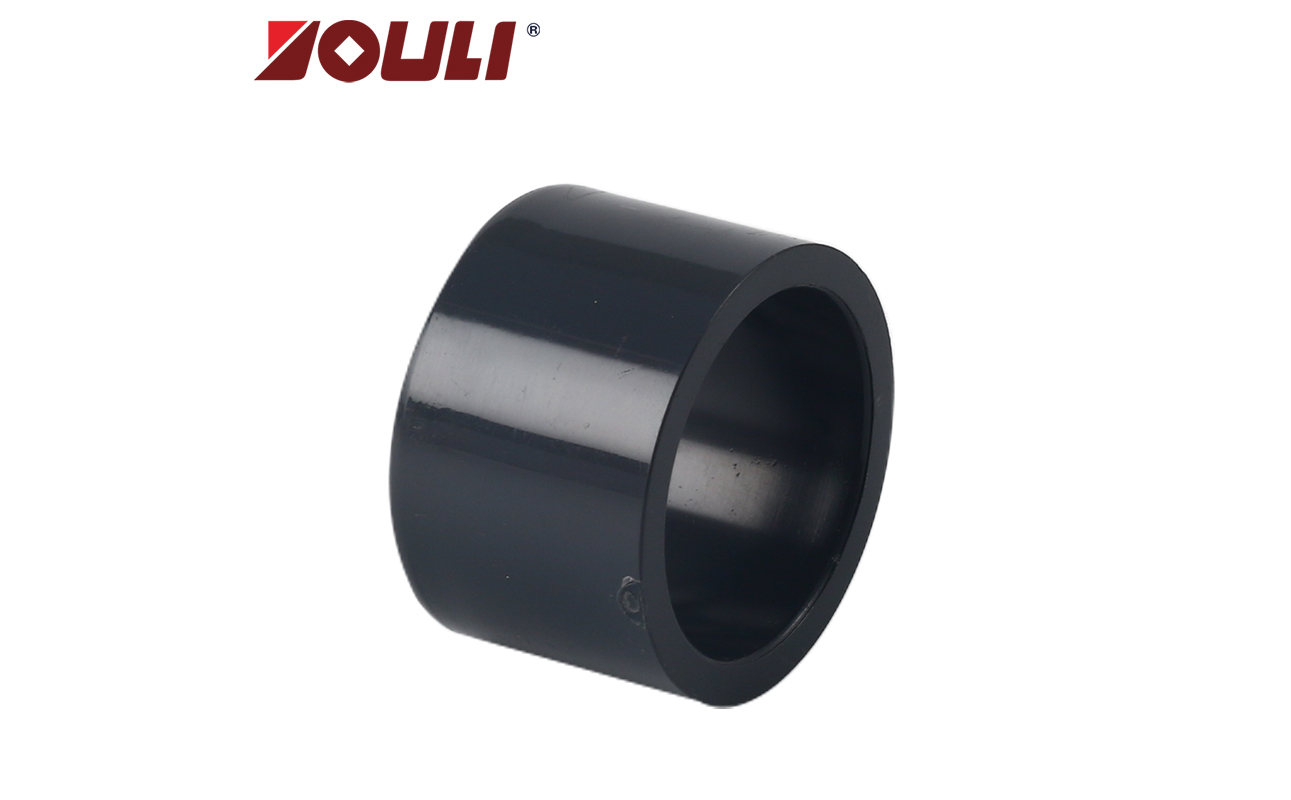

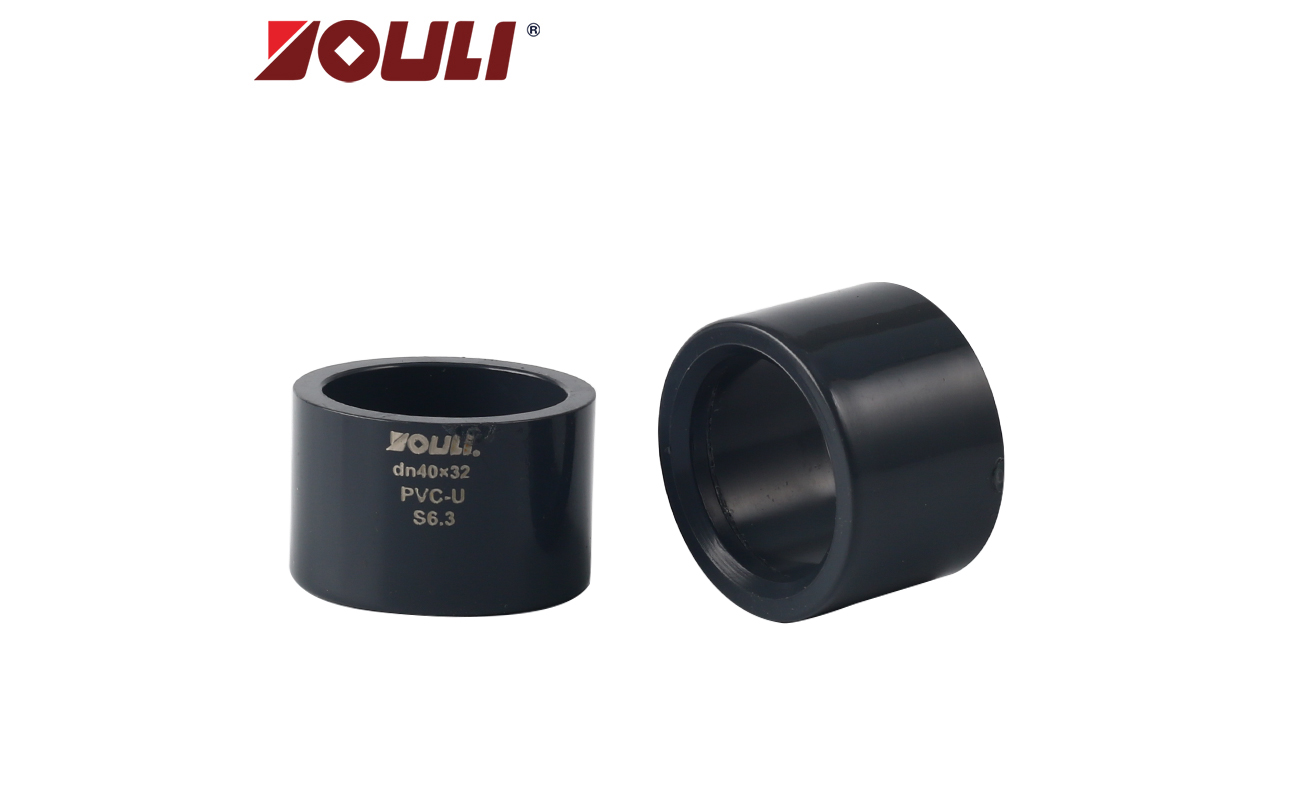

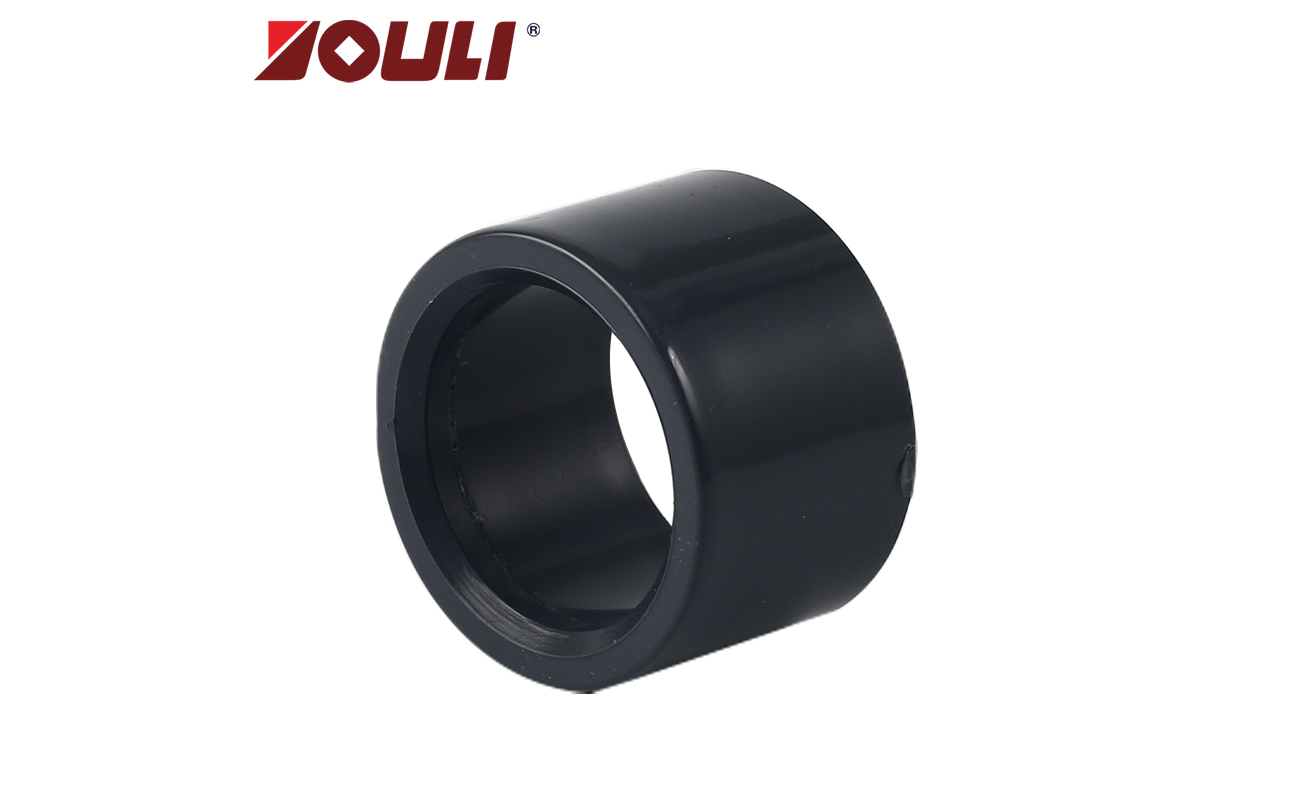

PVC-C/PVC-U 缩接 Reducing Bush

规格 Size

外形尺寸 Dimensions(mm)

编码 Code

D

d

L

S

PVC-C

PVC-U

¾"×½"

26.7

21.54

27.4

24.22

YL 36 06 025MA

YL 05 06 025MA

1"×½"

33.4

21.54

30.58

24.22

YL 36 06 031MA

YL 05 06 031MA

1"×¾"

33.4

26.87

30.58

27.4

YL 36 06 032MA

YL 05 06 032MA

"×1"

42.2

33.66

34.75

30.58

YL 36 06 040MA

YL 05 06 040MA

1½"×"

48.3

42.42

37.93

34.75

YL 36 06 050MA

YL 05 06 050MA

2"×1"

60.3

33.66

41.1

30.58

YL 36 06 062MA

YL 05 06 062MA

2"×"

60.3

48.56

41.1

37.93

YL 36 06 063MA

YL 05 06 063MA

"×2"

73.0

60.63

47.45

41.1

YL 36 06 075MA

YL 05 06 075MA

3"×"

88.9

73.38

50.63

47.45

YL 36 06 090MA

YL 05 06 090MA

4"×2"

114.3

60.63

60.14

41.1

YL 36 06 109MA

YL 05 06 109MA

4"×3"

114.3

89.31

60.15

50.63

YL 36 06 110MA

YL 05 06 110MA

5"×4"

141.3

114.76

69.68

60.15

YL 36 06 140MA

YL 05 06 140MA

6"×3"

168.3

89.31

79.2

50.63

YL 36 06 158MA

YL 05 06 158MA

6"×4"

168.3

114.76

79.2

60.15

YL 36 06 159MA

YL 05 06 159MA

6"×5"

168.3

141.87

79.2

69.68

YL 36 06 160MA

YL 05 06 160MA

8"×dm160

219.1

160

105

86

YL 36 06 224MA

YL 05 06 224MA

8"×6"

219.1

168.83

102

86

YL 36 06 225MA

YL 05 06 225MA

dm280×8"

280

219.84

146

102

YL 36 06 280MA

YL 05 06 280MA
